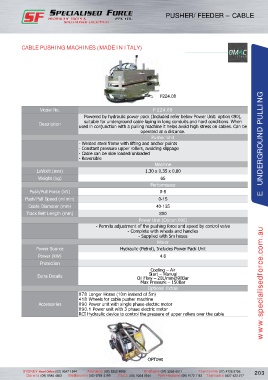

Page 213 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

PUSHER/FEEDER – CABLE

CABLE PUSHING MACHINES (MADE IN ITALY)

F224.08

Model No. F 224.08
Powered by hydraulic power pack (Included refer below Power Unit: option 090),

Description suitable for underground cable laying in long conduits and hard conditions. When
used in conjunction with a pulling machine it helps avoid high stress on cables. Can be
operated at a distance.
Pusher Unit
- Welded steel frame with lifting and anchor points E UNDERGROUND PULLING
- Constant pressure upper rollers, avoiding slippage
- Cable can be side loaded/unloaded
- Reversible
Machine
LxWxH (mm) 1.30 x 0.35 x 0.80
Weight (kg) 65
Performance
Push/Pull Force (kN) 0-8
Push/Pull Speed (m/min) 0-15
Cable Diameter (mm) 40-135
Track Belt Length (mm) 800
Power Unit (Option 090)
- Permits adjustment of the pushing force and speed by control valve
- Complete with wheels and handles
- Supplied with 5m hoses
Motor
Power Source Hydraulic (Petrol), Includes Power Pack Unit
Power (kW) 4.6
Protection
Cooling – Air
Start – Manual
Extra Details Oil Flow – 20L/min@90Bar
Max Pressure – 150Bar www.specialisedforce.com.au
Optional Extras
078 Longer Hoses (10m instead of 5m)
418 Wheels for cable pusher machine
Accessories 090 Power unit with single phase electric motor
090.1 Power unit with 3 phase electric motor
RCI Hydraulic device to control the pressure of upper rollers over the cable

OPT090
