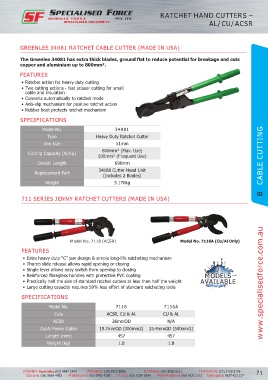

Page 81 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

RATCHET HAND CUTTERS –
AL/CU/ACSR

GREENLEE 34081 RATCHET CABLE CUTTER (MADE IN USA)

The Greenlee 34081 has extra thick blades, ground flat to reduce potential for breakage and cuts
copper and aluminium up to 800mm².

FEATURES
• Ratchet action for heavy-duty cutting
• Two cutting actions - fast scissor cutting for small
cable and insulation
• Converts automatically to ratchet mode
• Anti-slip mechanism for positive ratchet action
• Rubber boot protects ratchet mechanism
SPECIFICATIONS

Model No. 34081
Type Heavy Duty Ratchet Cutter
Jaw Size 51mm
800mm² (Max. Use)
Cutting Capacity (Al/Cu)
500mm² (Frequent Use)
Overall Length 698mm B CABLE CUTTING
34188 Cutter Head Unit
Replacement Part
(Includes 2 Blades)
Weight 5.170kg

711 SERIES JENNY RATCHET CUTTERS (MADE IN USA)

Model No. 7118 (ACSR) Model No. 7116A (Cu/Al Only)
FEATURES

• Extra heavy duty “C” jaw design & simple long-life ratcheting mechanism
• Thumb slide release allows rapid opening or closing
• Single lever allows easy switch from opening to closing 2
• Reinforced fibreglass handles with protective PVC coating MODELS
• Practically half the size of standard ratchet cutters at less than half the weight AVAILABLE www.specialisedforce.com.au
• Large cutting capacity requires 50% less effort of standard ratcheting tools
SPECIFICATIONS

Model No. 7118 7116A
Cuts ACSR, CU & AL CU & AL
ACSR 26mmOD N/A
Cu/Al Power Cable 19.7mmOD (300mm2) 25.4mmOD (500mm2)
Length (mm) 457 457
Weight (kg) 1.8 1.8
