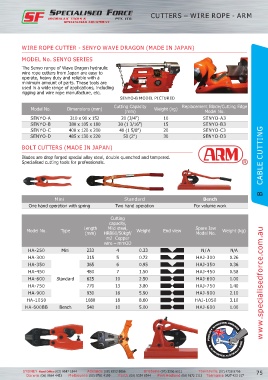

Page 85 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

CUTTERS – WIRE ROPE - ARM

WIRE ROPE CUTTER - SENYO WAVE DRAGON (MADE IN JAPAN)

MODEL No. SENYO SERIES

The Senyo range of Wave Dragon hydraulic
wire rope cutters from Japan are easy to
operate, heavy duty and reliable with a
minimum amount of parts. These tools are
used in a wide range of applications, including
rigging and wire rope manufacture, etc.
SENYO-B MODEL PICTURED

Cutting Capacity Replacement Blade/Cutting Edge
Model No. Dimensions (mm) Weight (kg)
(mm) Model No.
SENYO-A 310 x 90 x 152 20 (3/4") 10 SENYO-A3
SENYO-B 380 x 105 x 180 30 (1 3/16") 15 SENYO-B3
B CABLE CUTTING
SENYO-C 400 x 120 x 200 40 (1 5/8") 20 SENYO-C3
SENYO-D 485 x 130 x 220 50 (2") 30 SENYO-D3

BOLT CUTTERS (MADE IN JAPAN)

Blades are drop forged special alloy steel, double quenched and tempered.
Specialised cutting tools for professionals.

Mini Standard Bench
One hand operation with spring Two hand operation For volume work

Cutting
capacity,
Mild steel,
Model No. Type Length HRB80/50kgf/ Weight End view Spare Jaw Weight (kg)
(mm)
Model No.
m2 Copper
wire – mmOD
HA-250 Mini 233 4 0.33 N/A N/A
HA-300 315 5 0.72 HAJ-300 0.26
HA-350 365 6 0.95 HAJ-350 0.36
HA-450 480 7 1.50 HAJ-450 0.58
HA-600 Standard 625 10 2.50 HAJ-600 1.00
HA-750 770 13 3.80 HAJ-750 1.40 www.specialisedforce.com.au
HA-900 930 16 5.90 HAJ-900 2.10
HA-1050 1080 18 8.60 HAJ-1050 3.10
HA-600BB Bench 540 10 5.00 HAJ-600 1.00
