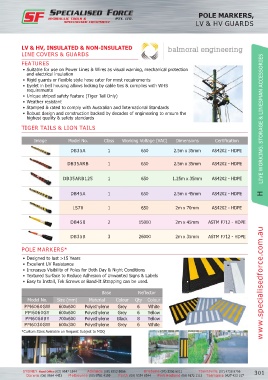

Page 313 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

POLE MARKERS,
LV & HV GUARDS

LV & HV, INSULATED & NON-INSULATED
LINE COVERS & GUARDS
FEATURES
• Suitable for use on Power Lines & Wires as visual warning, mechanical protection
and electrical insulation
• Rigid guards or flexible style hose cater for most requirements
• Eyelet in bell housing allows locking by cable ties & complies with WHS
requirements
• Unique striped safety feature (Tiger Tail Only)
• Weather resistant
• Stamped & rated to comply with Australian and International Standards
• Robust design and construction backed by decades of engineering to ensure the
highest quality & safety standards LIVE WORKING. STORAGE & LINESMAN ACCESSORIES
TIGER TAILS & LION TAILS

Image Model No. Class Working voltage (vAC) Dimensions Certification

DB35A 1 650 2.5m x 35mm AS4202 - HDPE

DB35ARB 1 650 2.5m x 35mm AS4202 - HDPE

DB35ARB125 1 650 1.25m x 35mm AS4202 - HDPE
H

DB45A 1 650 2.5m x 45mm AS4202 - HDPE

LS70 1 650 2m x 70mm AS4202 - HDPE

DB45B 2 15000 2m x 45mm ASTM F712 - HDPE

DB35B 3 26000 2m x 35mm ASTM F712 - HDPE

POLE MARKERS*

• Designed to last >15 Years
• Excellent UV Resistance
• Increases visibility of Poles for Both Day & Night Conditions
• Textured Surface to Reduce Adhesion of Unwanted Signs & Labels
• Easy to Install, Tek Screws or Band-It Strapping can be used. www.specialisedforce.com.au

Base Reflector
Model No. Size (mm) Material Colour Qty Colour
PM6060GW 600x600 Polyethylene Grey 6 White
PM6060GY 600x600 Polyethylene Grey 6 Yellow
PM6060BY 700x600 Polyethylene Black 8 Yellow
PM6030GW 600x300 Polyethylene Grey 6 White
*Custom Sizes Available on Request Subject to MOQ

SYDNEY Head Office (02) 9547 1844 Adelaide (08) 8352 8866 Brisbane (07) 3256 6011 Townsville (07) 4728 8756 301
Darwin (08) 8984 4453 Melbourne (03) 9761 4199 Perth (08) 9354 8544 Port Hedland (08) 9172 1113 Tasmania 0427 423 217
