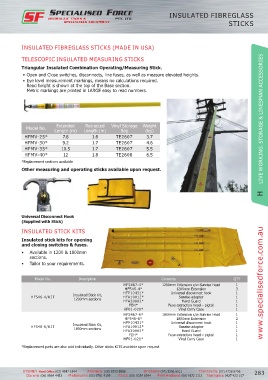

Page 295 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

INSULATED FIBREGLASS
STICKS

INSULATED FIBREGLASS STICKS (MADE IN USA)

TELESCOPIC INSULATED MEASURING STICKS

Triangular Insulated Combination Operating/Measuring Stick.
• Open and Close switches, disconnects, line fuses, as well as measure elevated heights.
• Eye level measurement markings, means no calculations required.
Read height is shown at the top of the Base section.
Metric markings are printed in LARGE easy to read numbers.

Retracted
Extended
Model No. Length (m) Length (m) Vinyl Storage Weight LIVE WORKING. STORAGE & LINESMAN ACCESSORIES
Bag
(kg)
HFMV-25* 7.8 1.6 TE2607 3.7
HFMV-30* 9.2 1.7 TE2607 4.6
HFMV-35* 10.5 1.7 TE2607 5.5
HFMV-40* 12 1.8 TE2608 6.5
*Replacement sections available
Other measuring and operating sticks available upon request.

H

Universal Disconnect Hook
(Supplied with Stick)

INSULATED STICK KITS

Insulated stick kits for opening
and closing switches & fuses.
• Available in 1200 & 1800mm
sections.
• Tailor to your requirements.

Model No. Description Contents QTY
HF5467-4* 1200mm Extension c/w Sunrise Head 1 www.specialisedforce.com.au
HF546-4* 1200mm Extension 3
HFP10431* Universal disconnect hook 1
HF546-4/KIT Insulated Stick Kit, HFA10012* Sunrise adaptor 1
1200mm sections
HFA30002* Hand Guard 1
FEH* Fuse extraction head – pigtail 1
HF01-020* Vinyl Carry Case 1
HF5467-6* 1800mm Extension c/w Sunrise Head 1
HF546-6* 1800mm Extension 2
HFP10431* Universal disconnect hook 1
HF546-6/KIT Insulated Stick Kit, HFA10012* Sunrise adaptor 1
1800mm sections
HFA30002* Hand Guard 1
FEH* Fuse extraction head – pigtail 1
HF01-021* Vinyl Carry Case 1
*Replacement parts are also sold individually. Other sticks KITS available upon request
