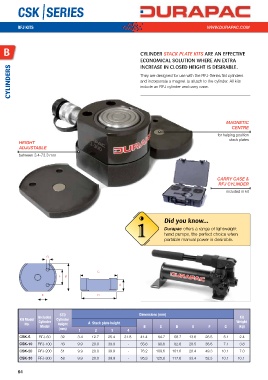

CSK |SERIES




         RFJ KITS                                                                            WWW.DURAPAC.COM




   B                                                           cyLiNDEr Stack pLate kItS arE aN EffEctivE

                                                               EcoNomicaL soLutioN whErE aN Extra
                                                               iNcrEasE iN cLosED hEiGht is DEsirabLE.
      CYLINDERS                                                They are designed for use with the RFJ-Series flat cylinders

                                                               and incorporate a magnet to attach to the cylinder. All kits
                                                               include an RFJ cylinder and carry case.








                                                                                                      MAGNETIC
                                                              ?                                   for helping position
                                                                                                        CENTRE


          hEIGhT                                                                                       stack plates
          ADJUSTABLE
          between 3.4-73.3 mm


                                                              !                                   CARRY CASE &


                                                                                                  RFJ CYLINDER
                                                                                                      included in kit




                                                              i           Did you know...


                                                                          Durapac offers a range of lightweight
                                                                          hand pumps, the perfect choice when
                                                                          portable manual power is desirable.



                      G


                                            C
                           F  B
                                                      A

                    E                       D



                            STD                                Dimensions (mm)
                  Includes                                                                                 Kit
          Kit Model       Cylinder
            No.   Cylinder   Height     A  Stack plate height                                             Weight
                   Model                                         B      C      D      E       F      G     (kg)
                           (mm)     1      2      3       4
          CSK-5   RFJ-50    32      3.4   12.7   25.4   31.8   41.4    64.7   58.7   13.6   28.5    5.1    2.4
          CSK-10  RFJ-100   43      9.9   20.0   39.9     -    55.6    90.6   82.6   20.5   36.6    7.1    3.8
          CSK-20  RFJ-200   51      9.9   20.0   39.9     -    76.2   109.6   101.6  28.4   49.3   10.1    7.0
          CSK-30  RFJ-300   58      9.9   20.0   39.9     -    95.3   125.6   117.6  33.4   52.3   10.1    10.1
