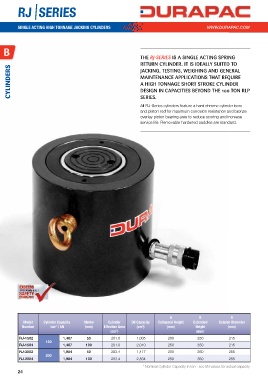

RJ |SERIES




         SINGLE ACTING HIGH TONNAGE JACKING CYLINDERS                                        WWW.DURAPAC.COM




   B
                                                               thE rJ-SerIeS is a siNGLE actiNG spriNG
                                                               rEturN cyLiNDEr. it is iDEaLLy suitED to
      CYLINDERS                                                maiNtENaNcE appLicatioNs that rEquirE
                                                               jacKiNG, tEstiNG, wEiGhiNG aND GENEraL

                                                               a hiGh toNNaGE short stroKE cyLiNDEr
                                                               DEsiGN iN capacitiEs bEyoND thE 100 toN rLp
                                                               sEriEs.

                                                               All RJ-Series cylinders feature a hard chrome cylinder bore
                                                               and piston rod for maximum corrosion resistance and bronze
                                                               overlay piston bearing area to reduce scoring and increase
                                                               service life. Removable hardened saddles are standard.




















































                                                                            A             B             D                               E                  F                 H               J
           Model    Cylinder Capacity   Stroke   Cylinder   Oil Capacity   Collapsed Height   Extended   Outside Diameter        Cylinder Bore Diameter   Piston Rod Diameter   Base to Advance Port   Standard Saddle   Weight   Model   Handle Type
           Number       ton* / kN      (mm)    Effective Area   (cm )      (mm)         Height        (mm)                             (mm)               (mm)             (mm)         Diameter (mm)     (kg)       Number
                                                                3
                                                     2
                                                  (cm )                                 (mm)
          RJ-1502             1,407     50        201.0       1,005         200          250           215                             160                115               50              99             50      RJ-1502      ♦ ♥
                     150
          RJ-1504             1,407    100        201.0       2,010         250          350           215                             160                115               50              99             60      RJ-1504      ♦ ♥
          RJ-2002             1,984     50        283.4       1,417         200          250           255                             190                135               50              115            72      RJ-2002      ♦ ♥
                     200
          RJ-2004             1,984    100        283.4       2,834         250          350           255                             190                135               50              115            85      RJ-2004      ♦ ♥
                                                                * Nominal Cylinder Capacity in ton - see kN values for actual capacity
