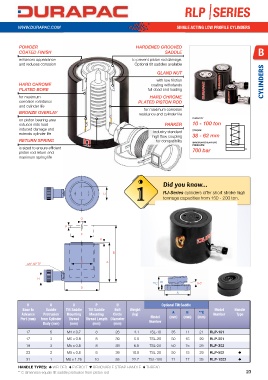

P. 23

RLP |SERIES




         WWW.DURAPAC.COM                                                        SINGLE ACTING LOW PROFILE CYLINDERS



          POWDER                                             hARDENED GROOvED
          COATED FINISh                                                   SADDLE                                    B
          enhances appearance                               to prevent piston rod damage.
          and reduces corrosion                              Optional tilt saddles available

                                                                       GLAND NUT
                                                                       with low friction
          hARD ChROME                                               coating withstands                                CYLINDERS
          PLATED BORE                                              full dead end loading
          for maximum                                         ?     hARD ChROME
          corrosion resistance                                PLATED PISTON ROD
          and cylinder life                                      for maximum corrosion
          BRONZE OvERLAY                                       resistance and cylinder life
          on piston bearing area                                                      CAPACITY
          reduces side load                                               PARkER      10 - 100 ton
          induced damage and                                                          STROkE
                                                                     industry standard
          extends cylinder life                                      high flow coupling   38 - 62 mm
          RETURN SPRING                                       !       for compatibility  MAXIMUM OPERATING
          is sized to ensure efficient                                                PRESSURE
          piston rod return and                                                       700 bar
          maximum spring life



                                                              i          Did you know...



                                               U                         RJ-Series cylinders offer short stroke high
                                                                         tonnage capacities from 150 - 200 ton.




                                     O
                              P
                                     F
                                              K


                                                   B
                                     E          A
             3/8"-NPTF


                  H
                                                                     **C  B              0-5˚
                                     D
                                                                                A

                A   B   D   E   F   H   K   O   P    U                   Optional Tilt Saddle
 Model   Cylinder Capacity   Stroke   Cylinder   Oil Capacity   Collapsed   Extended   Outside   Cylinder   Piston Rod   Base to   Saddle   Tilt Saddle   Tilt Saddle   Bolt   Weight   Model   Handle
 3
 Number   ton* / kN  (mm)  Effective Area   (cm )   Height   Height   Diameter   Bore   Diameter   Advance   Protrusion   Mounting   Mounting   Circle   (kg)     A   B   **C   Number  Type
 (cm )   (mm)  (mm)  (mm)  Diameter   (mm)  Port (mm)  from Cylinder   Thread   Thread Length  Diameter   Model   (mm)  (mm)  (mm)
 2
 (mm)               Body (mm)   (mm)      (mm)     (mm)            Number
 RLP-101  10  101   38   14.5  55   88   126   69   42.9  38.1  17   5   M4 x 0.7  8   26   4.1   TSL-10  35  11  21  RLP-101
 RLP-201  20  201   45   28.7  129   98   143   92   60.5  50.8  17   3   M5 x 0.8  8   39   5.0   TSL-20  50  15  29  RLP-201
 RLP-302  30  295   62   42.1  261   117   179   101   73.2  66.5  19   3   M5 x 0.8  8   39   6.8   TSL-20  50  15  29  RLP-302
 RLP-502  50  435   60   62.1  372   122   182   124   88.9  69.8  23   2   M5 x 0.8  8   39   10.9   TSL-20  50  15  29  RLP-502  ♣
 RLP-1002  100  887   57   126.7  722   141   198   165   127.0  92.2  31   1   M8 x 1.25  10   55   22.7   TSL-100  71  17  35  RLP-1002  ♣
         HANDLE TYPES:  ♣ WELDED  ♦ EYEBOLT  ♥ REMOVABLE STRAP HANDLE  ♠ THREAD
         ** C dimension equals tilt saddle protrusion from piston rod                                         23
