Portable Winch PCW-3000-Li-AIK Battery Powered Capstan Winch
"WORLD'S FIRST" BATTERY POWERED PORTABLE CAPSTAN WINCH

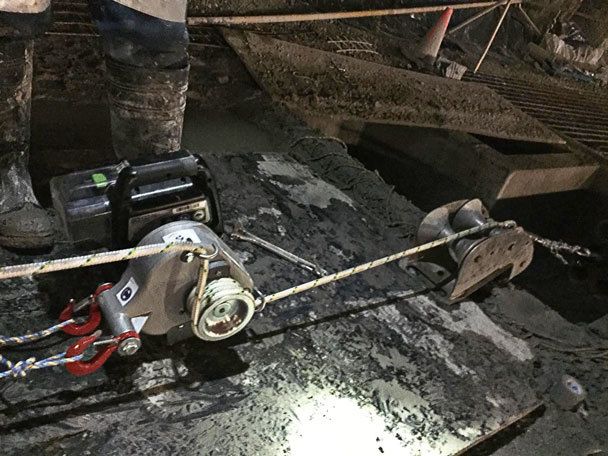

Whether you are Hauling Electrical Cables, Pulling a Felled Tree out of the Scrub, Recovering/Moving a Vehicle/Boat or Assisting in a Rescue Situation; this Battery Portable Winch is the Ideal Piece of Equipment for you!
An eco-friendly pulling winch, requiring zero maintenance; meaning it is always ready to be used.
- Powerful, with a continuous pulling force of 700 kg.
- Intermittent peak pulling force 1,000kg.
- Lightweight - only 9.5 kg, the Battery Winch can be carried wherever it is needed.
- Operating temperature -14°C to 45°C
- It reaches a pulling speed of 11.6 metres per minute and has up to 70-minute battery life.
- This winch is perfect for both indoor and outdoor operation (no emissions).
- Users will then be able to accomplish laborious tasks with ease.
- This winch facilitates works of all kinds.
Lithium-ion Batteries
Lithium-Ion battery preserves air quality by releasing no emissions and is also recyclable.
- Battery now has a low self-discharge rate when not being used (1.25% to 5% per month).
- Compatible with the VICTA 82V range of battery-powered tools.
- Battery is rechargeable to full capacity at any moment of the discharge cycle.
Benefits of a Battery-Powered Portable Capstan Winch
- Lightweight, compact & portable: Cordless - Can be carried where it is needed. Very easy to store.
- Zero maintenance: Always ready to be used, therefore perfect for quick or unplanned jobs. Ideal for seasonal and/or infrequent use.
- Eco-friendly: Reduced emissions and energy consumption, the winch preserves air quality. Furthermore, its batteries are recyclable!
- Self-powered: Since the winch is powered by a battery, no external energy source is required to make it work.
- High performance: A constant pulling force. The lithium-ion battery offers a consistent performance level, from the very beginning to the end of its cycle.
- Energy efficiency: Durable and powerful winch, of high quality, that allows an optimal performance. The best weight-energy ratio.
- Durable: Its high-quality components ensure a continuous use and a long lifetime.
- Quick anchoring and simple to use: Can be anchored anywhere in a few seconds. Once the winch is anchored, all that is left to do is to wrap the rope around the drum and pull.
- Safe: The operator is never in the pulling line. Furthermore, the winch can be used in all positions.
- Synthetic rope: No more steel wire ropes! Polyester rope has low-stretch properties and provides unequaled working comfort.
- Unlimited rope length: Thanks to the capstan drum principle, there is no accumulation of rope on the drum. It only goes through the winch.
- Low noise level, no smell or vapor: Can be used inside as well as outside.
Specifications
| Model No. | PCW-3000-Li-AIK | ||
| Kit Model No.* | PCW-3000-Li-AIK(C) | ||
| Engine | 1.0KW Electric Engine - all positions - 82V maximum with a protection against overload (automatic shutdown) | ||
| Max. Pulling Force | Continuous: 700kg Peak: 1000kg | ||
| 3 Speeds | 8.1m/min, 10m/min, 11.6m/min | ||
| Weight | 9.5kg | ||
| Drum Size | 76mm | ||
| Rope | Low-stretch double-braided polyester rope - unlimited length | ||
| Minimum OD | 10mm | ||
| Maximum OD | 13mm | ||
| Recommended OD | 10mm | ||
| Battery | 82V 2AH | ||
| Battery Life | Up to 70mins run time | ||
| Dimensions | 30.2cm wide x 31.8cm long x 31cm high | ||
* PCW-3000-Li-AIK(C): Winch kit with one battery and charger
Customer can also purchase the following options:
- PCW-300-Li-AIK(CC): Winch kit with 2 batteries and charger
- and PCW-3000-Li-AIK: Winch kit without batteries and charger
Click on the links to download more information on the Portable Winch PCW-3000-Li-AIK Battery-Powered Capstan Winch.
