Maus Tube Expanders for Boilers

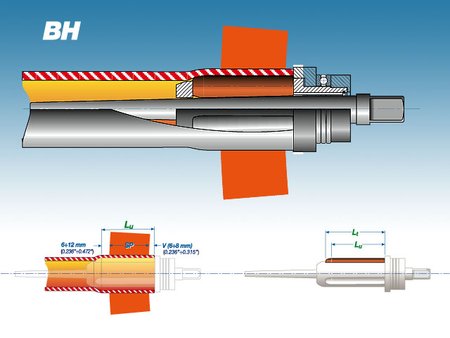

BH Series
- Tube expander with plane shoulder available in standard version with 3 expansion rolls for fixed depth rolling
Tubes
1.1/2" - 4.1/2" (38.1-114.3mm)

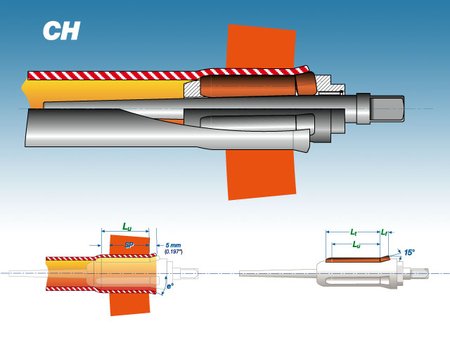

CH Series
- Tube expander for rolling and flaring at a constant 15°inclination, available in the standard version with 3 expansion rolls and 3 flaring rolls.
Tubes
1/2" - 4.1/2" (12.7-114.3mm)

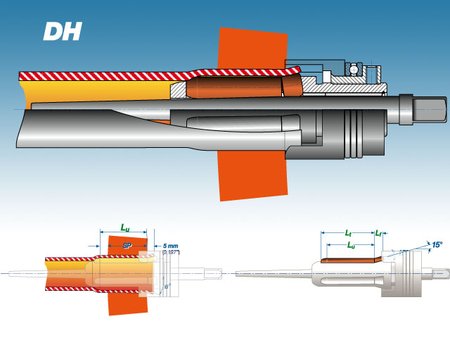

DH Series
- Tube expander for rolling and flaring at a constant 15°inclination, available in the standard version with 3 expansion rolls and 3 flaring rolls.
- This is the improved version of "CH" tube expander which gives a uniform results in rolling and flaring thanks to an adjustable stop (with ball-thrust bearing), which stops the flaring rolls from penetrating inside the tubes.
Tubes
1/2" - 4.1/2" (12.7-114.3mm)

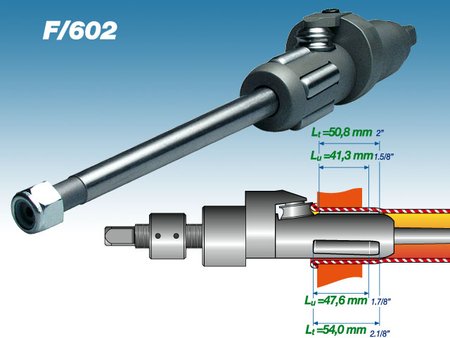

F/602 Series
- Tube expander for simultaneus rolling and beading of tubes in boilers.
Tubes
1.1/2" ÷ 3" (38.1-76.2mm)
