Maus Portrol 401 Portable Electric Tube Rolling System

Maus Portrol 401 Portable Electric Tube Rolling System

Portrol 401 - Portable electric equipment for the controlled rolling of tubes with external diameter from 12.7 to 38.1 mm (1/2" to 1.1/2").

  • This equipment is characterised by the low weight of its controller as well as the tube rolling machine in relation to the high torque available in the most powerful model.
  • It is an excellent compromise between quality and price in the field of portable electric tube rolling machines.
  • For quality maintenance operations or small batch productions of tube bundles.
  • High quality - Repeatability +/-5%
  • Reliable & robust (long life)
  • Easy to handle - Weighs only 13kg (28lbs)
  • 400V three-phase system

400V Three-Phase System

Maus Italia has produced the first completely portable 400 volt three-phase tube rolling machine to satisfy strict European regulations.

  • PR-1000 electric tube rolling machine "Class II Double insulated" certified
  • EN 60745-1 / EN 60745-1/A1 / EN 60745-2-1 / EN 60745-2-2

Portable Electronic Controller - Port 401

The main features that set the Port 401 controller apart:

  • Selection of rolling torque
  • Automatic stop of motor rotation when torque threshold reached
  • Rolling torque display
  • Manual rotation reverse
  • Remote control
  • "No load" resetting of tube expander

PR-1000 Portable Three-Phase Electric Tube Rolling Machine

Extremely lightweight and high performance, the PR-1000 is equipped with three controls in the handle: Start, Stop and Reverse.

  • This latter control allows rapid reversal of the motor’s rotation and the resultant locking of the mandrel when rolling is complete.

Remote Magnetic Emergency Stop Button

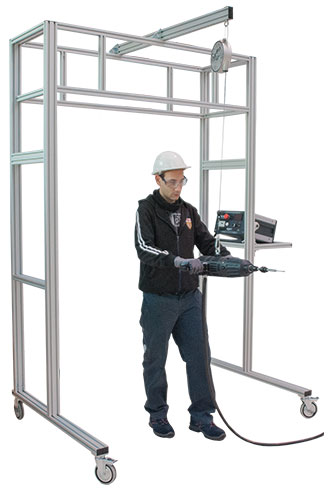

The Portrol 401 Comprises

  • Portrol 401 Controller
  • PR-1000 series tube rolling machine
  • F314HS-3/8" quick connector for high speeds
  • TPB-2A Balancer
  • Porter Basic trolley (optional) for support and vertical tube rolling movement

Different Configurations of PR-1000

Working LevelsPR-1000-4PR-1000-5PR-1000-7PR-1000-10PR-1000-15
Max. Torque (Nm)1215223040
Max. Tube Diameter - Ferrous (mm)12.719.022.225.431.8
Max. Tube Diameter - Non-Ferrous (mm)19.022.231.838.144.4
