Izumi S7G-MX25OM Battery Hydraulic Multi-Tool
Battery multi-tool with interchangeable head.
- Five tools in one.
- Crimp, Cut Cable, Knockout Punch for Sheet-Metal, Threaded Rod Cutter, Angle Steel Punch.
Includes: Battery Tool, 2 Batteries (BL1850B) and 12/24VDC-230VAC Charger (DC18RC)
PLEASE NOTE: Add (CC) to the model number e.g. S7G-MX25OM(BB)
Specifications
| Model No. | S7G-MX25OM |
| Motor | 18 VDC |
| Reservoir Capacity | 78 cc |
| Force at Die Face | 127 kN |
| Size | 346 (L) x 328 (H) x 82 (W) mm |
| Weight | 4.0 kg with BL1850B Battery (without crimp head) |
Interchangeable Heads
PLEASE NOTE: All Head Attachments Sold Separately

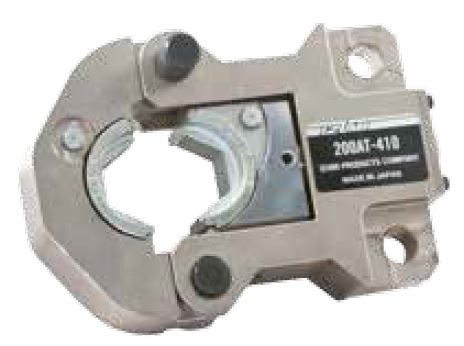

12 Tonne Crimp Head - Model No. 200AT-410
| Opening Between Die Faces | 17mm |
| Maximum Capacity | 300mm2 AL/CU |
| Weight | 2.4kg |
NOTE: Accepts existing 12 ton U-type dies. Features pin open and hinged head.
Cutting Head - Model No. 200AT-50YC
| Cutting Capacity | Up to 50mm OD Cable (Including Insulation) Cuts Non-Ferrous Cables Only | |
| Weight | 1.0kg |
NOTE: Approximately 50 cuts per charge.
Punch Head - Model No. 200AT-AP18
| Punching Capacity | Supplied with 3 Sets of Punch Dies 10.5, 13.5 & 17.5 mm Diameter for 6mm Thick Steel | |
| Size | 186 x 130 x 67mm | |
| Weight | 3.8kg | |
| Throat Depth | 47mm | |
| To Centre of Punch | 23.5mm |
NOTE: Approximately 100 holes punched per charge.
Steel Cutter - Model No. 200AT-S16
(*Note: this item is discontinued and no longer available after current stock is sold.
Please see https://www.specialisedforce.com.au/clearance/izumi-200at-s16-steel-cutter-attachment-for-battery-multi-head-tool)
| Cutting Capacity | Number of Cuts/Charge | |
| 16mm Rebar | 80 | |
| 16mm Soft Steel Bar | 120 | |
| 13mm Stainless Steel Bar | 105 | |
| 16mm Guy Strand | 105 |

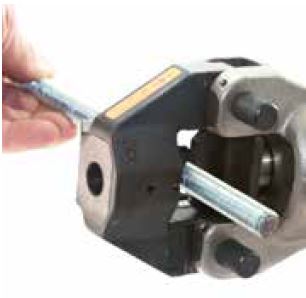

Threaded Rod Cutter - Model No. 200AT-13WT
Produces a clean, bur free cut for easy installtion of nut.
| Cutting Capacity | Number of Cuts/Charge | |
| M10 or 3/8BSW Steel Threaded Rod | 80 | |
| Stainless Steel | 52 | |
| M12 or 1/2 BSW Steel Threaded Rod | 82 | |
| Stainless | 42 |
NOTE: Includes Model 13WT-07 M12 Blade Set
OPTIONAL BLADE SET MODEL NO's: 13WT-06 M10, 13WT-02 3/8 BSW, 13WT-05 1/2 BSW.
Knock Out Punch Head - Model No. 200AT-9PD
| Punching Capacity | Up to 63.5mm Stainless Steel and 115.5mm diameter hole on 3.2mm thickness Mild Steel | |
| No of Punches | Approx 42 per charge |
NOTE: Punch & Die, Draw Studs & Spacer Collars are the Same as Those used for SH-10. 200AT-9PD comes with Draw Studs & Spacer for Stainless Steel, Mild Collars.
Click on the link to download more information on the Izumi S7G-MX25OM Battery Hydraulic Multi-Tool.
