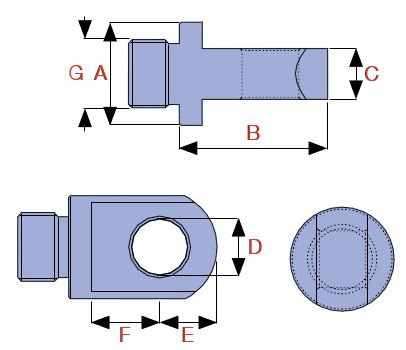

| Model No. | Cylinder Capacity (ton) | Dimensions (mm) | ||||||
| A | B | C | D | E | F | G | ||
| CPC-5 | 5 | 28 | 41 | 14 | 16 | 16 | 19 | 3/4" - 16UNF |
| CPC-1015 | 10/15 | 42 | 61 | 25 | 22 | 25 | 28 | 1" - 8UNC |
| CPC-25 | 25 | 57 | 74 | 38 | 31 | 31 | 35 | 1 1/2" - 16UN |
Click on the link to download more information on the Durapac Cylinder Accessory Piston Rod Clevises.
