Aldon 4011 Series Cast Steel Wheel Chocks with Spurs

Aldon 4011 Series Cast Steel Wheel Chocks with Spurs (Made in USA)

Aldon introduced cast steel chocks in 1955 with the unique feature of replaceable spurs (or teeth).

  • The spur is the key to effective chocking.
  • Under wheel pressure the spur bites into the hard, smooth surface of the rail to keep the chock from sliding.
  • But eventually, like the blade of a knife, the spur edge will become dull from use.
  • A dull spur can’t bite into the rail to keep the chock from sliding.
  • You can keep the sure grip of an Aldon wheel chock by turning the spur to three new sharp edges and then replacing the spurs at nominal cost instead of buying a new wheel chock.

Standard Chock with Flag (710mm Handle)

Single Chock & Flag Double Chock & Flag

Model No Type Suits Rail Type Weight (kg) Model No Type Suits Rail Type Weight (kg)

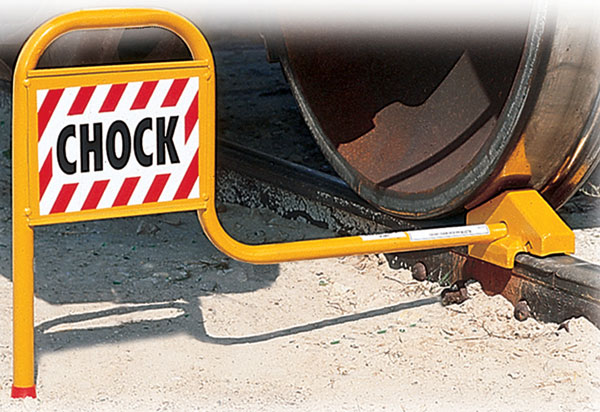

4011-01 A Exposed 5.9 4011-06 C Exposed 7.3

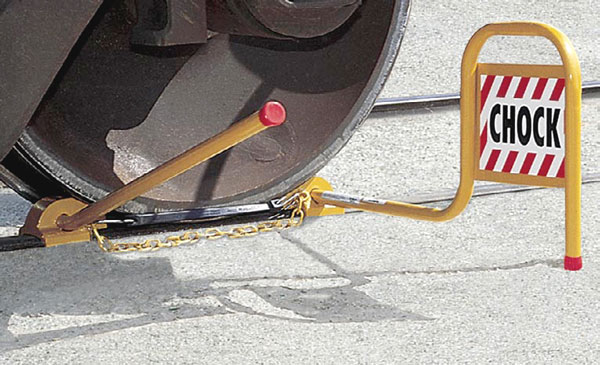

4011-02 A-1 Flush 5.9 4011-07 C-1 Flush 7.3
4011-08* C-2 Exposed 9.1

*With tension clamp and padlock

Standard Chock (380mm Handle)

Single Chock Double Chock

Model No Type Suits Rail Type Weight (kg) Model No Type Suits Rail Type Weight (kg)
4011-09 D Exposed 2.7 4011-03 B Exposed 5.5
4011-10 D-1 Flush 3.6 4011-04 B-1 Flush 5.5

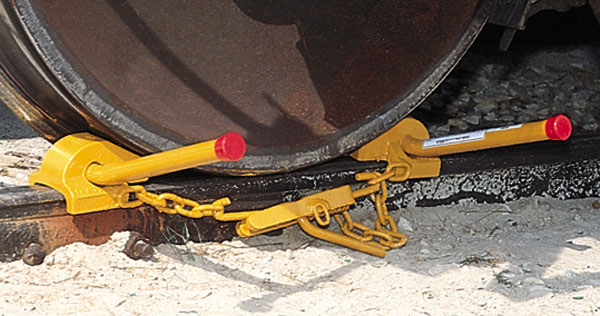

4011-05* B-2 Exposed 9.1

*With tension clamp and padlock

Stay-Clear Chocks with Flag (1117mm Handle)

Keep your head and hands away from the rail car when placing wheel chocks.

  • Handle length of 1117mm makes it easy to place the chock under the wheel while staying clear of the car body.
  • Added handle length makes it easy to see the chock even down a long line of cars.
  • Cast steel chock with replaceable spurs insures effective car blocking.
Single Chock & Flag Double Chock & Flag

Model No Suits Rail Type Weight (kg) Model No Suits Rail Type Weight (kg)

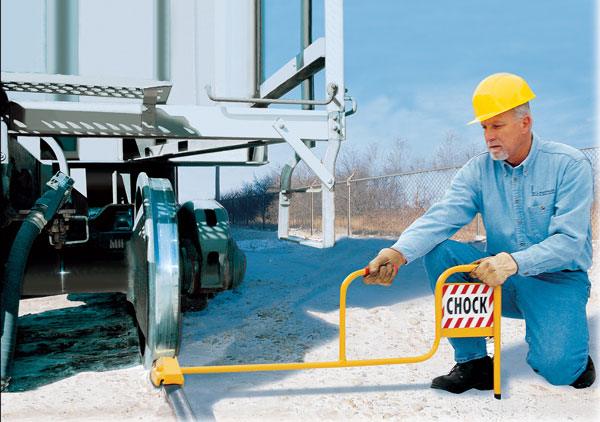

4011-14 Exposed 6.4 4011-16 Exposed 11.8

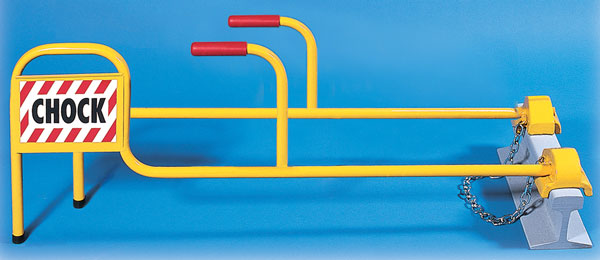

4011-15 Flush 6.4 4011-17 Flush 11.8

Whack 'Em Severe Duty Wheel Chocks (380 & 710mm Handles)

If your wheel chocks get stuck under locomotive or rail car wheels, try our Whack ‘Em chocks.

  • Reinforced steel handles can stand up to hammer blows or yanking the handle sideways to free the chock.
  • Look for the red handles.
Whack 'Em Double Chocks (380mm Handle)

Model No Suits Rail Type Weight (kg)
4011-30 Exposed 6.4

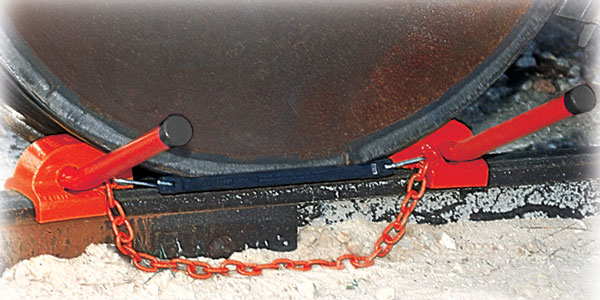

4011-31 Flush 6.4
Whack 'Em Single Chock with Flag
(710mm Handle)
Whack 'Em Double Chocks with Flag
(710mm Handles)

Model No Suits Rail Type Weight (kg) Model No Suits Rail Type Weight (kg)

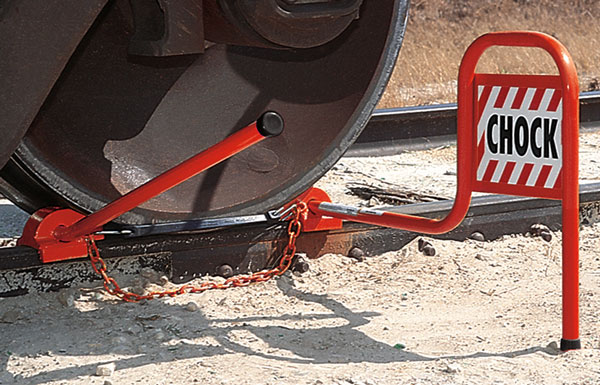

4011-32 Exposed 7.3 4011-34 Exposed 8.2
4011-33 Flush 7.3 4011-35 Flush 8.2

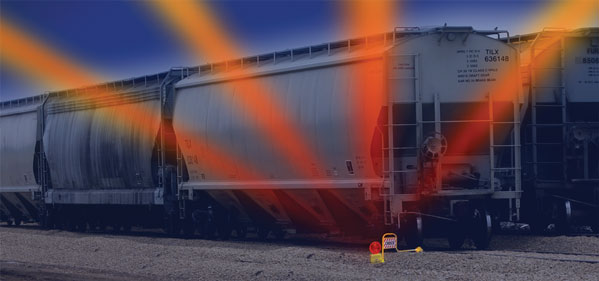

Standard Chock with Safety Lights

Why risk derailment or ruptured hoses if the night switching crew doesn’t notice that a car wheel is still chocked?

  • Aldon flag wheel chocks are now available with quick flashing light and mounting bracket.
  • The light can be seen for over 1.6km away with your choice of colour; Blue, Red or Amber.
Single Chock with Flag & Light Double Chock with Flag & Light

Model No Suits Rail Type Weight (kg) Model No Suits Rail Type Weight (kg)
4011-36 Exposed 6.4 4011-38 Exposed 7.7
4011-37 Flush 6.4 4011-39 Flush 7.7

Click on the link to download more information on the Aldon 4011 Series Cast Steel Wheel Chocks with Spurs.
