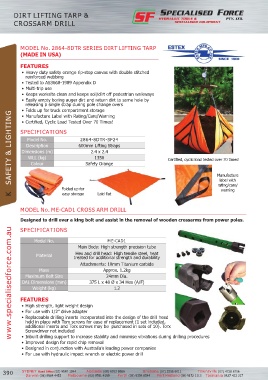

Page 402 - SF ELEC CAT_V4.0_WEB_F2-UPDATE-18-02-19

DIRT LIFTING TARP &
CROSSARM DRILL

MODEL No. 2864-8DTR SERIES DIRT LIFTING TARP
(MADE IN USA)

FEATURES
• Heavy duty safety orange rip-stop canvas with double stitched
reinforced webbing
• Tested to AS3668-1989 Appendix D
• Multi-trip use
• Keeps worksite clean and keeps soil/dirt off pedestrian walkways
• Easily empty boring auger dirt and return dirt to same hole by
releasing a single strap during pole change overs
• Folds up for truck compartment storage
K SAFETY & LIGHTING
• Manufacture Label with Rating/Care/Warning
• Certified, Cyclic Load Tested Over 70 Times!

SPECIFICATIONS
Model No. 2864-8DTR-SF24
Description 600mm Lifting Straps
Dimensions (m) 2.4 x 2.4
WLL (kg) 1350 Certified, cyclic load tested over 70 times!
Colour Safety Orange

Manufacture
label with
rating/care/
Folded up for warning
easy storage Laid flat

MODEL No. ME-CAD1 CROSS ARM DRILL

Designed to drill over a king bolt and assist in the removal of wooden crossarms from power poles.

www.specialisedforce.com.au
SPECIFICATIONS
Model No. ME-CAD1
Main Body: High strength precision tube
Hex and drill head: High tensile steel, heat
Material treated for additional strength and durability
Attachments: 10mm Titanium carbide
Mass Approx. 1.2kg
Maximum Bolt Size 24mm Dia.
OAL Dimensions (mm) 375 L x 48 Ø x 34 Hex (A/F)
Weight (kg) 1.2

FEATURES
• High strength, light weight design
• For use with 1/2” drive adapter
• Replaceable drilling inserts incorporated into the design of the drill head
held in place with Torx screws for ease of replacement (1 set included,
additional inserts and Torx screws may be purchased in sets of 10). Torx
Screwdriver not included
• Inbuilt drilling support to increase stability and minimise vibrations during drilling procedures
• Improved design for rapid chip removal
• Designed in conjunction with Australia’s leading power companies
• For use with hydraulic impact wrench or electric power drill
